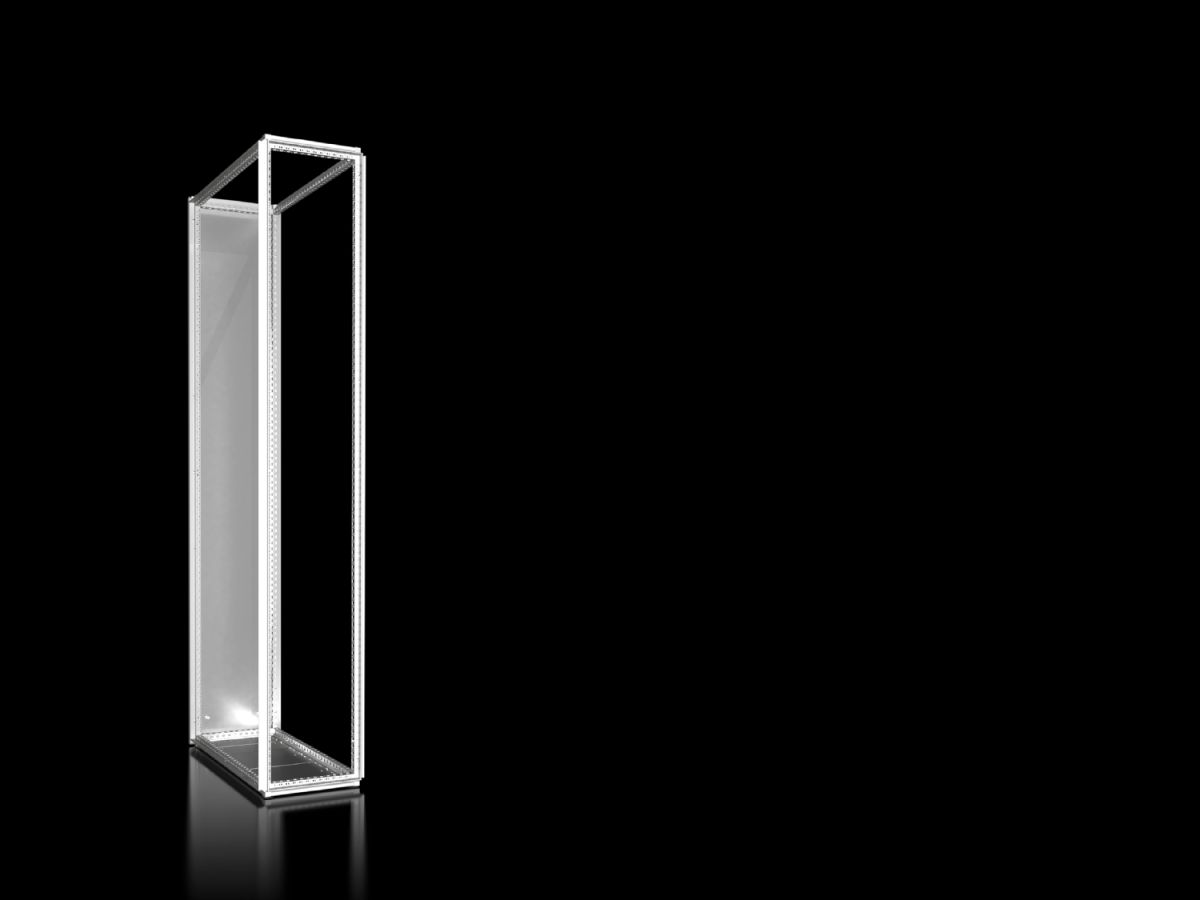

Baying systems VX, for installation with partial doors and internal separation in a modular design.
- Article number:
- VX 9680.428
- Material
- Sheet steel, 1.5 mm
- Surface finish
- Enclosure frame: Dipcoat-primed
Rear panel: Dipcoat-primed, powder-coated on the outside, textured paint
Gland plates: Zinc-plated - Colour
- RAL 7035
- Supply includes
- Enclosure frame
Rear panel
Gland plates - Protection category to IEC 60 529
- Up to IP 54, depending on the panels
- Test specification
- IEC 61 439-1/-2
- IEC 61 641
- Dimensions
- Width: 400 mm
Height: 2,200 mm
Depth: 800 mm - Packs of
- 1 pc(s).
- Weight/pack
- 46.1 kg
- PCF/PU (Cradle-to-Gate)
- 113.6 kg CO2 eq (Cat B)
- Note on the PCF class
- Category B: PCF value (cradle-to-gate) approximated based on product weight and self-declared
- EAN
- 4028177929746
- ETIM 7.0
- EC000261
- ECLASS 8.0
- 27180101
- Product description
- VX Modular enclosure, WHdepth 400x2200x800 mm, sheet steel
