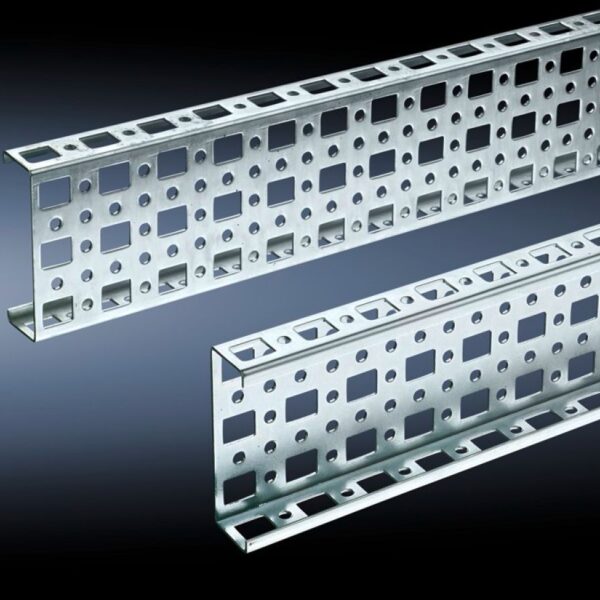

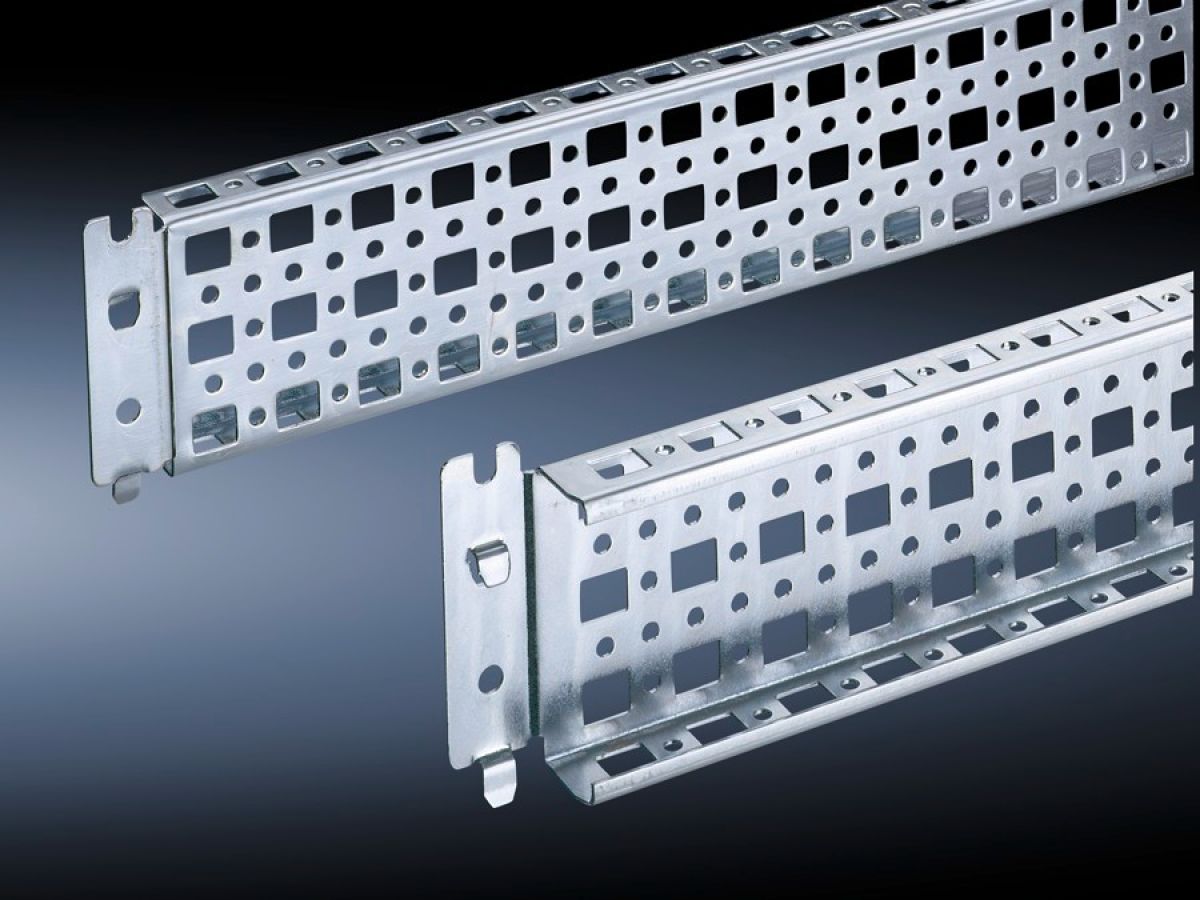

Rittal SZ 4367.000 4367000 PS punched section with mounting flange 23 x 73 mm for TS, VX SE

$120.06

Weight 5.34 kg
SKU: SZ 4367.000 Category: Mounting equipment
  • Description
  • GET A PRICE
Description

For direct mounting on the horizontal enclosure sections of a TS. Only suitable for mounting to the vertical enclosure sections in conjunction with an adaptor. Simply locate into the TS punchings and secure.

Article number:
SZ 4367.000
Product description
Variable, with 5 rows of holes for universal skeleton structures or partial assembly. Simply locate into the system punchings and secure.
Material
Sheet steel
Surface finish
Zinc-plated
Supply includes
Assembly screws
Installation options
On the vertical TS, VX SE enclosure section via adaptor rails for VX compatibility
On the horizontal TS enclosure section
On the horizontal VX SE enclosure section, bottom
On the horizontal VX SE enclosure section, top in the width
To fit
Enclosure type: TS
VX SE
To fit width/depth: 1,200 mm
Packs of
4 pc(s).
Weight/pack
5.34 kg
Customs tariff number
73269098
EAN
4028177099807
ETIM 8
EC002625
ETIM 7.0
EC002625
ECLASS 8.0
27189234
Product description
SZ TS punched section with mounting flange, 23 x 73 mm, for TS, SE, for W/D: 1200 mm
GET A PRICE
For a detailed proposal, please send your request to [email protected] and specify the required positions and company details.
