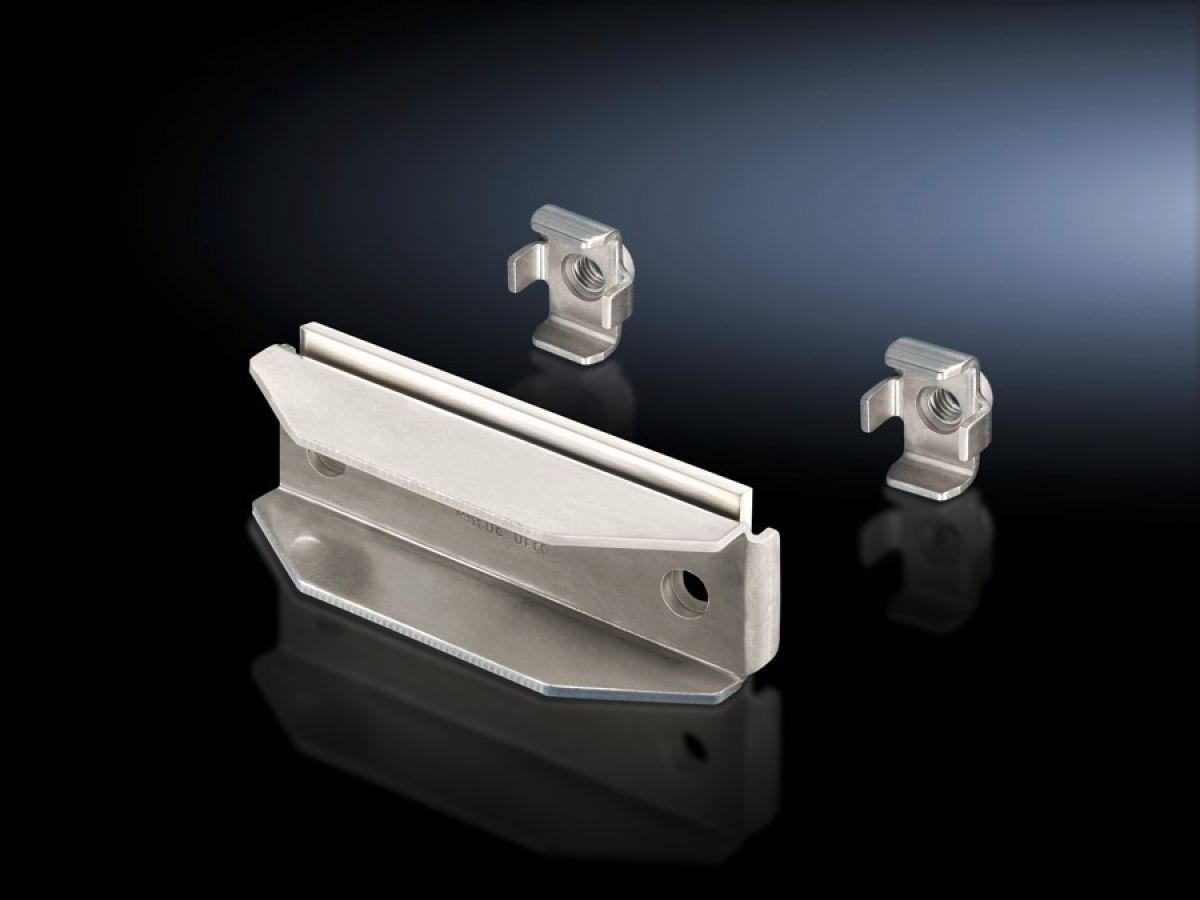

For the connection of laminated flat copper bars.
- Article number:
- SV 9676.749
- Product description
- For connecting laminated copper bars to a busbar distributor system made from flat copper. Suitable for 10 mm bar thickness.
- Material
- Connection plate: E-Cu
Thrust piece: Stainless steel
Busbar claw: Stainless steel - Supply includes
- Assembly parts (excluding screws)
- Assembly instruction
- The required screw length must be selected in line with the busbar width W, i.e. length = W + fastening measurement. Screws are not included with the supply.
- Busbar claw with threaded insert M10
- Number of bars per conductor
- 2
- Mounting dimensions
- 50 mm
- Clamping area for laminated copper bars (W x H)
- 100 x 20 mm
- To fit laminated copper bars
- Qty.: 2
with no. of membranes: 10
with membrane width: 100 mm
with membrane thickness: 1 mm - Packs of
- 1 pc(s).
- Weight/pack
- 0.64 kg
- Copper weight (kg per piece)
- 0.27
- Customs tariff number
- 85369010
- EAN
- 4028177625570
- ETIM 7.0
- EC001900
- ECLASS 8.0
- 27400613
- Product description
- SV Connection plate, clamping area WH: 100×20 mm, (Flat-PLS)
