Facilitates fast, simple integration of additional 2 U mounting space within an enclosure by attaching to the enclosure frame or to the existing mounting angles at the sides.
- Article number:
- DK 7246.420
- Product description
- Facilitates fast, simple integration of additional 2 U mounting space within an enclosure by attaching to the enclosure frame or to the existing mounting angles at the sides. The flexible slot fastening of the brackets means that the distance between the two installation brackets may be freely selected, so that other 482.6 mm (19˝) attachment dimensions may be implemented. The second row of holes is used for the optional configuration of additional mounting surfaces.
- Material
- Sheet steel
- Surface finish
- Zinc-plated
- Supply includes
- Assembly parts
- Units
- 2 U
- Packs of
- 2 pc(s).
- Weight/pack
- 0.362 kg
- PCF/PU (Cradle-to-Gate)
- 1.4 kg CO2 eq (Cat B)
- Note on the PCF class
- Category B: PCF value (cradle-to-gate) approximated based on product weight and self-declared
- Customs tariff number
- 73269098
- EAN
- 4028177435735
- ETIM 7.0
- EC002625
- ECLASS 8.0
- 27189234
- Product description

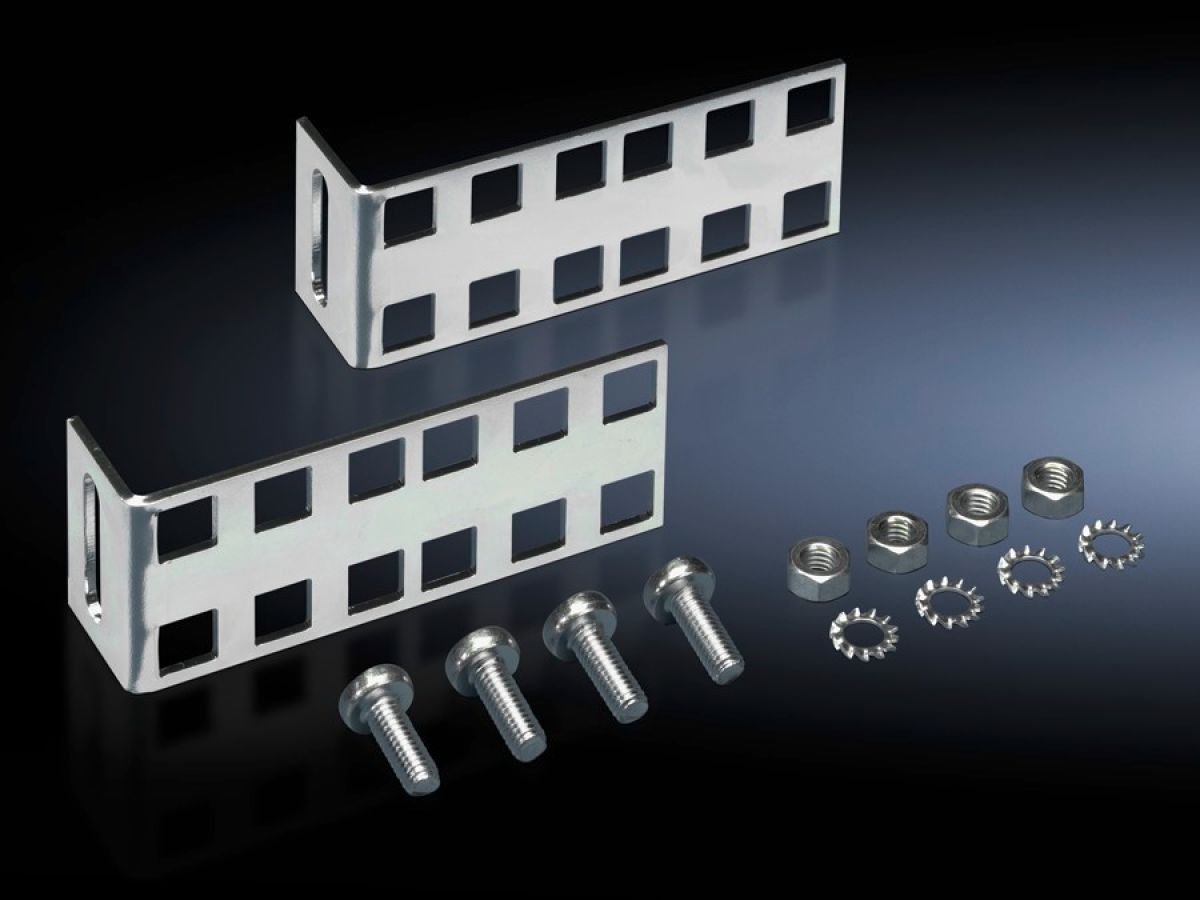

- DK Mounting kit, 2 U, For 482.6 mm (19″) equipment
