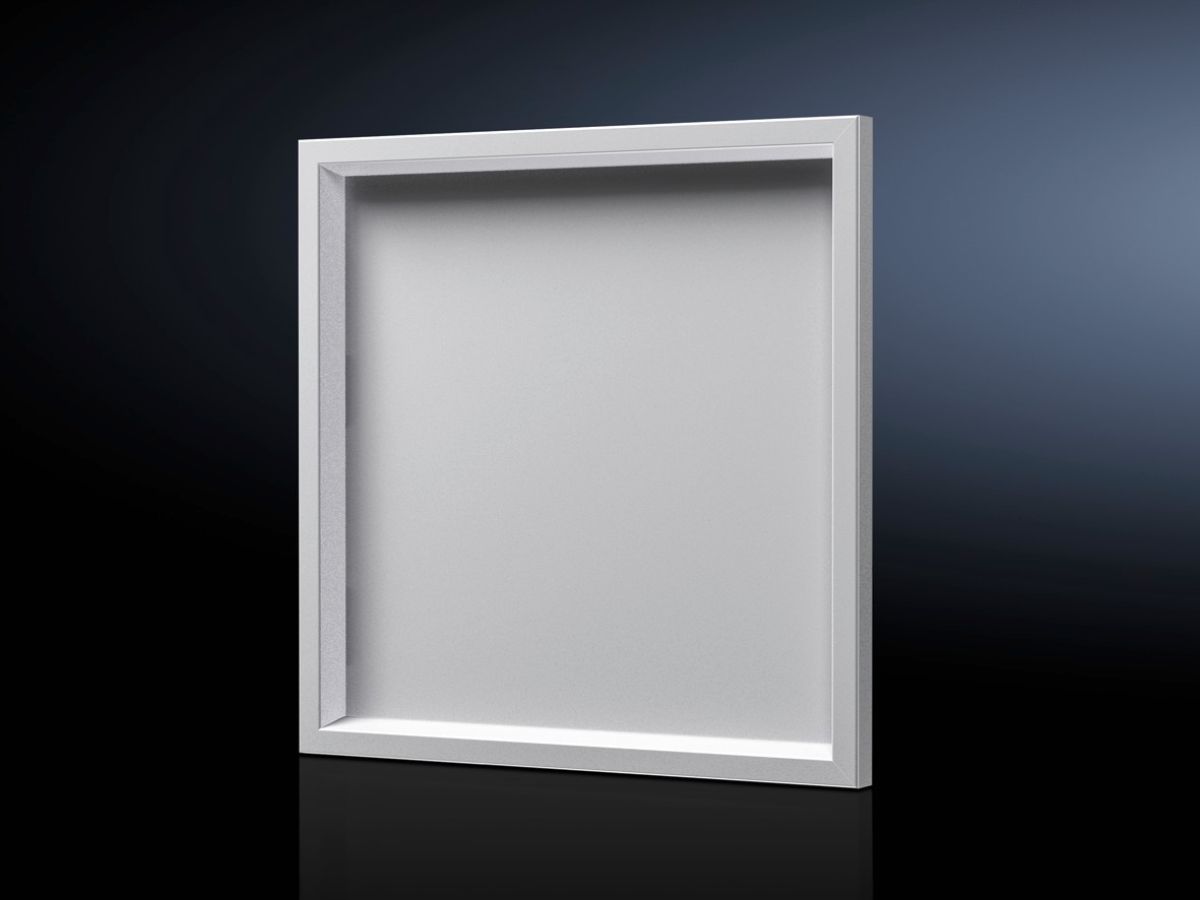

For external mounting on an AE enclosure instead of a door and on surfaces. Frame construction with internal corner connectors, 3 mm aluminium plate secured from the inside.
- Article number:
- AX 2745.010
- Product description
- For external mounting on an AE enclosure instead of a door and on surfaces. Frame construction with internal corner connectors, 3 mm aluminium plate secured from the inside.
- Material
- Aluminium, natural anodised
- Supply includes
- Aluminium frame
Display panel
Hinges
Brackets - Protection category to IEC 60 529
- IP 54
- To fit Model No.
- 1007.000
- 1013.000
- 1050.000
- 1350.000
- Note
- When installing instead of a door, the cam lock is required
- To fit
- Enclosure type: AX
Width: = 500 mm
Height: = 500 mm - Dimensions
- Width: 497 mm
Height: 497 mm
Depth: 36 mm - Dimensions of aluminium plate
- Width: 443 mm
Height: 443 mm - Area available for population
- Width: 427 mm
Height: 427 mm - Packs of
- 1 pc(s).
- Weight/pack
- 3.54 kg
- Customs tariff number
- 76169990
- EAN
- 4028177938557
- ETIM 8
- EC000747
- ETIM 7.0
- EC000747
- ECLASS 8.0
- 27182204
- Product description
- FT Operating panel, WHD: 497x497x36 mm, for AE enclosures instead of the door and surfaces
